Main Controller
18.35.869
117,82
FrigoCraft H165-K07.SZ6245.AW5538.KP4 Split Ref. Unit FrigoCraft H165-K07.SZ6245.AW5538.KP4 Split Ref. Unit FrigoCraft H165-K07.SZ6245.AW5538.KP4 Split Ref. Unit
80.18.092

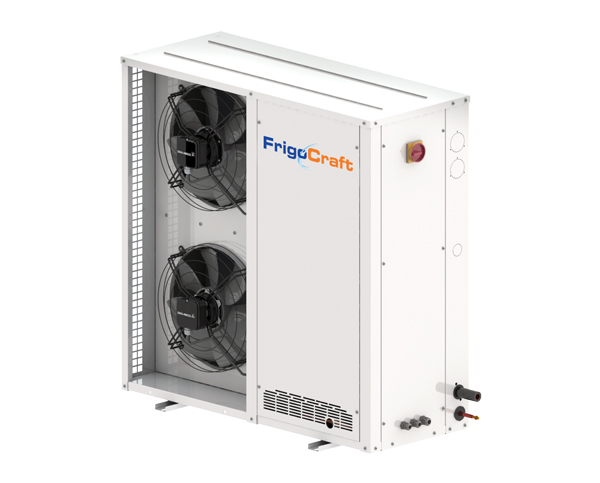

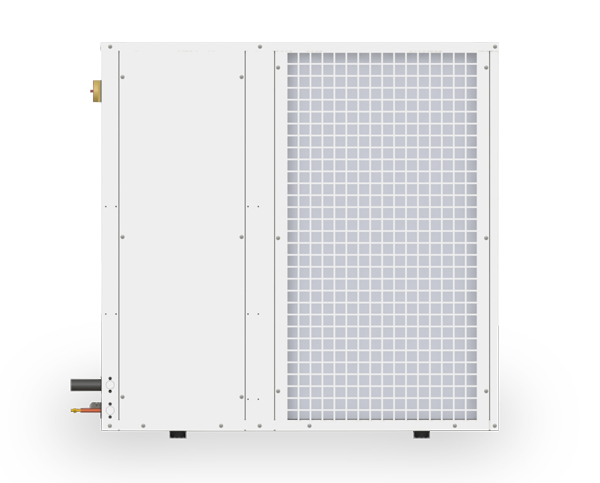

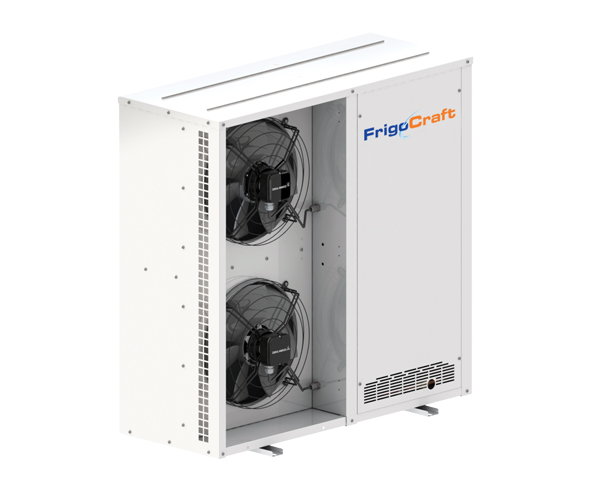

FrigoCraft H165-K07.SZ6245.AW5538.KP4 Split Ref. Unit
1.922,42 EUR
Sales Unit:
:
Pieces
Categorie:
:
Technical Information
Documents
Technical Features
Production Facility
Turkey
Brand
FrigoCraft
Type of casing
With Housing - Silent Series
Application
+5/45°C EN12900/10K-SH
Application Areas
Cool Storage
Room Volume - V (m³) (+40°C)
170
Room Volume - V (m³) (+45°C)
165
Room Volume - V (m³) (+50°C)
150
Refrigerant
R404A
Cooling Capacity (Watts) (+40°C)
9.891
Cooling Capacity (Watts) (+45°C)
9.416
Cooling Capacity (Watts) (+50°C)
8.941
Energy Efficiency (COP)
2,92
Body Model
FrigoCraft Base Plate - 7-CHH-245
Liquid Line
3/8"
Suction Line
3/4"
Charge Valve
-
Net Weight
-
Brute Weight
-
Compressor Brand
Kulthorn
Compressor Type
Hermetic Reciprocating
Compressor Crank Heater
Included Compressor
Compressor Quantity & Power (Pcs-Hp)
1 x 3,00
Compressor Power Sup. (V / Ph / Hz)
380 - 400 / 3 / 50 - 60
Compressor Discharge line (Ø inches)
1/2"
Dompressor Suction line (Ø inches)
3/4"
Condenser Brand
KARYER
Condenser Model
FrigoCraft Condenser - 7-CHH-245
Condenser Capacity Watts Dt = 15 °C
19.166
Condenser Fin Space (mm)
2,10
Condenser Surface Area (m²)
40,70
Air Flow (m3/h)
6.128
Fan Motor Brand
Zıehl-Abegg
Fan Motor Model
-
Rotation (RPM)
6 Poles (~900 RPM)
Fan Wing
-
Fan Brackets & Grills
-
Fan Motor (Quantity x Diameter)
2x450
Fan Motor Input Power (kW)
2X0,174
Fan Motor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Liquid Tank
FrigoCraft 3lt 3/8" Receiver
Filter Dryers
-
Low Pressure Control
-
High Pressure Control
-
Electrical Panel
FrigoCraft Schneider E. Triphase Panel 5,5-8 A.
